| Input | 220V~240VAC or 110-277VAC | LED Source | LumiLEDs LEDs,SDCM 3 |
| Watts | 20-30W | Lumen Effective |
110LM/W |
| Size | φ300x90mm | DALI Type |
DALI2 DT6, DT8 for option |
| Materials | Dia Dast Aluminum+ PC | PF | >0.9 |
| CCT | 2800-7000K | CRI | >82 |
| Electrical Classification | Class I | IP Class | IP65, IK10 |
| Beam angle | 120° | Body Color | White, Black or Gray Painted |
| Warranty | 3-5 years | Certification | CE&RoHS&SAA,TUV |

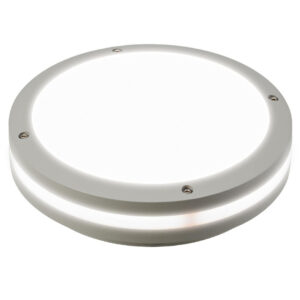

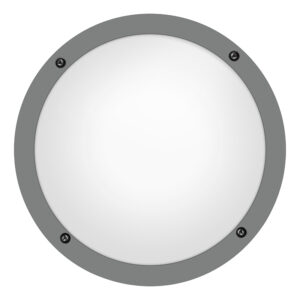

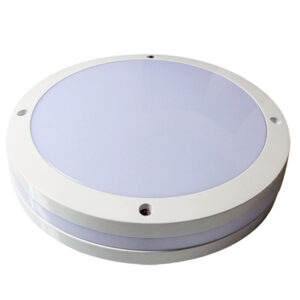

DALI Bulkhead Light Round IP65 Waterproof Halo 300mm
DALI Bulkhead Light Round IP65 Waterproof Halo 300mm is a high-performance lighting solution designed for versatility and durability. With a robust DieCast Aluminum body and PC Diffuser, it ensures long-lasting performance in various environments. The unique Halo Side Lighting Effect provides effective and visually appealing illumination. Featuring LumiLEDs LED technology, it delivers an impressive lumen efficacy of 110LM/W with a CRI of over 82, ensuring accurate color rendering. Notably, it is designed to eliminate blue light hazards and offers flicker-free operation for enhanced visual comfort. The light comes with a branded DALI driver from top manufacturers such as BOKE, Tridonic, Osram, VS, or TCI, ensuring reliable performance. Optional features include emergency kits and motion sensors, allowing for additional functionality and safety.
Key Highlights
- DALI2
- High Lumen 110LM/W
- Robust Cast Aluminum Body
- Anti-UV Diffuser
- Professional Powder Coated
- Anti Salty,IP65,IK10
- Uniform Soft Lighting
Category: DALI Commercial Light , DALI LED Ceiling Light
Tags: 3CCT , Aluminum body , Amenity Lighting , Area Lighting , DALI , DALI Emergency , DALI2 , DT6 , DT8 , Emergency , IK10 , IP65 , Motion Sensor , Public Lighting
DALI Bulkhead Light Round IP65 Waterproof Halo 300mm (Model: ILED-BH-R DALI) is a versatile and reliable lighting solution suitable for various applications. It offers a range of features designed to meet different lighting needs. With its 3CCT switchable option, users can choose from different color temperatures. The input voltage compatibility of 220-240VAC/110-277VAC and selectable wattage of 20W/30W provide flexibility in installation.
Constructed with a Die Cast Aluminum body and PC Diffuser, this light ensures durability and longevity. The LumiLEDs CRI 82 LEDs with SDCM 3 guarantee accurate color rendering. The built-in DALI driver from reputable brands such as BOKE, VS, TCI, Osram, or Tridonic ensures reliable performance. It has a power factor greater than 0.9 and is flicker-free, ensuring efficient and comfortable lighting.
The DALI Bulkhead Light offers a lumen efficacy of up to 110LM/W, providing soft and even lighting with a wide beam angle of 120°. It is designed to resist yellowing and UV damage, maintaining its quality over time. The light can be surface mounted or pendant installed, offering flexibility in placement.
With an IK10 rating, it is highly resistant to impact, while its IP65 waterproof feature makes it suitable for outdoor and wet environments. The light has a long lifespan of 50,000 hours, reducing maintenance needs. It can also be integrated with emergency kits and motion sensors for added functionality.
The base comes in three powder-coated finishes: Black, Silver Gray, or White, allowing for seamless integration into various settings. With its reliable performance and easy installation, the DALI Bulkhead Light Round IP65 Waterproof Halo 300mm is an ideal choice for walkways, tunnels, storage areas, car parks, and other applications requiring efficient mains and emergency lighting.
1. Versatility: With its 3CCT switchable option, you can customize the color temperature according to your project requirements, ensuring the desired ambiance and lighting effect.
2. Reliability and Flexibility: This bulkhead light operates on a wide input range, making it suitable for different voltage systems. The selectable wattage options allow you to adjust the power consumption based on specific needs.
3. High-Quality Lighting: The LumiLEDs CRI 82 LEDs ensure excellent color rendering, enhancing the visual appeal of your spaces. The soft and even lighting distribution creates a comfortable and inviting atmosphere.
4. Durability and Adaptability: Constructed with a robust Die Cast Aluminum body and a PC Diffuser, this light fixture is designed to withstand harsh conditions. Its IP65 waterproof rating ensures reliable performance in outdoor environments.
5. Energy Efficiency: With a lumen efficacy of up to 110LM/W and a power factor greater than 0.9, this bulkhead light offers energy savings while providing ample illumination, contributing to lower energy costs.
6. Safety and Convenience: The built-in DALI driver from reputable brands ensures stable and flicker-free operation, promoting visual comfort. The compatibility with emergency kits and motion sensors adds an extra layer of safety and convenience to your projects.
7. Long Lifespan: With a lifespan of 50,000 hours, this ceiling light minimizes maintenance requirements and offers long-term reliability, reducing the need for frequent replacements.
8. Aesthetics: The powder-coated finishes in black, silver gray, or white provide options to seamlessly integrate the bulkhead light into your project’s design aesthetic.
The size of the DALI Bulkhead Light Round IP65 Waterproof Halo 300mm is φ300x90mm.
Yes, the DALI bulkhead Light Square IP65 Waterproof Halo 300mm comes with a built-in quality brand DALI driver from BOKE, VS, TCI, Osram, or Tridonic.
Yes, you can select the wattage option for the DALI Bulkhead Light round IP65 Waterproof Halo 300mm between 20W and 30W.
Yes, this Bulkhead light offers a 3CCT switchable option, allowing you to adjust the color temperature according to your preferences.
The DALI Bulkhead Light Square IP65 Waterproof Halo 300mm provides a lumen efficacy of up to 110LM/W, ensuring efficient and effective illumination.
No, the DALI Bulkhead Light Round IP65 Waterproof Halo 300mm is designed to be flicker-free, providing a comfortable and visually stable lighting experience.
Yes, this light fixture has an IP65 waterproof rating, making it ideal for outdoor applications where protection against dust and water is required.
The DALI Bulkhead Light Round IP65 Waterproof Halo 300mm has a long lifespan of 50,000 hours, ensuring durability and minimal maintenance requirements.
Yes, the DALI Bulkhead Light Square IP65 Waterproof Halo 300mm offers installation options for both surface mounting and pendant installation.
Yes, the DALI Bulkhead Light Square IP65 Waterproof Halo 300mm is designed with anti-UV properties, preventing yellowing and maintaining its performance over time.
Yes, the DALI Bulkhead Light Round IP65 Waterproof Halo 300mm can work with emergency kits, providing additional safety and functionality during power outages.
Yes, the DALI Bulkhead Light Round IP65 Waterproof Halo 300mm can be combined with motion sensors, allowing for automated lighting control based on occupancy.
The DALI Bulkhead Light Round IP65 Waterproof Halo 300mm has a wide beam angle of 120°, providing broad and uniform illumination.
The DALI Bulkhead Light Round IP65 Waterproof Halo 300mm has an electric class I rating, ensuring safety and compliance with electrical standards.
The base of the DALI Bulkhead Light Round IP65 Waterproof Halo 300mm is available in three powder-coated finishes: black, silver gray, and white, allowing for design integration in various settings.
1. Walkways and Corridors: Illuminate pathways and corridors in commercial buildings, schools, hospitals, or hotels, providing safe and well-lit passage for occupants.
2. Tunnels: Enhance visibility and safety in underground tunnels, ensuring clear visibility for drivers and pedestrians.
3. Storage Areas: Illuminate storage spaces such as warehouses, garages, or industrial facilities, providing ample lighting for easy navigation and retrieval of stored items.
4. Car Parks: Install these lights in parking lots or garages to ensure well-lit and secure environments for vehicles and pedestrians.
5. Outdoor Areas: With its IP65 waterproof rating, these lights are suitable for outdoor applications such as building exteriors, entrances, or outdoor recreational spaces where reliable and durable lighting is required.
6. Commercial Spaces: Enhance lighting in retail stores, offices, lobbies, or public areas, providing an inviting and well-lit environment for customers, employees, or visitors.
7. Educational Institutions: Illuminate classrooms, libraries, or common areas in schools, colleges, or universities, creating an optimal learning environment.
8. Healthcare Facilities: Install these lights in hospitals, clinics, or medical centers to provide bright and uniform lighting for patient rooms, hallways, or waiting areas.
9. Hospitality Sector: Use these lights in hotels, resorts, or restaurants to create a welcoming ambiance in common areas, lobbies, or dining spaces.
10. Residential Spaces: These lights can also be used in residential settings such as apartments, condominiums, or houses, providing efficient and aesthetically pleasing lighting solutions.
1. Can this DALI Bulkhead Light have emergency and motion sensor together?
Yes, it can have emergency and motion sensor together, built-in the luminares.
2. If it has emergency, is it self-test?
Yes, we can provide self-test emergency with this DALI Bulkhead Lights.
3. If I want to make the emergency function with DALI, not only mains power, is it Okay?
Yes, it is Okay, the DALI Bulkhead light can not only have DALI for mains power, also can have DALI emergency for option. You can contact with our professional sales team.
4. Is the motion sensor settable?
Yes, the motion sensor is settable by DIP switcher.
5. Can we use it in coastal areas?
Yes, we use outdoor quality powder, and use professional coated processes to meet strict paint adhesion testing.
