| Model NO. |
DA-12A-2 | Brand | FlexCUBE |
| Input | 110-240VAC | Frequency | 50/60Hz |
| Efficiency | >83% | PF | >0.95 |
| Output Voltage |
10-42VDC | Output Current |
100-450mA |
| Max. O-Voltage |
48VDC | Output Power |
Max. 12W |
| Ta |
50℃ |
Tc |
80℃ |
| Dimming | 0-100%(Dimming Depth 0.1%) |
THD |
<12%@240VAC |
| Protection type | Class II | PMW Frequency |
4000Hz |
|
Output type
|
SELV |
Operation temperature |
-20°C-50°C |
| Warranty | 5 years | Certifications | SAA CE ROHS |
|
Surge |
L-N:1KV |
||
| Features | 1. Support DALI2. 2. Class ll design, SELV safety ultra-low voltage. 3. PWM digital dimming, standard DALI logarithmic dimming curve. 4. DALI address will be automatically assigned by DALI master, 1 DALI address. 5. Universal AC input / Ful range, High PF, High efficiency, Flicker Free. 6. Standby power input<0.5W, meels the requiremenls of ERP certification. 7. Multi-current & wide voltage, suitable for different power LEDs. 8. Over-heat /Over-load / Short circuit protection, recover automatically. 9. Suitable for indoor LED lighting application. 10. In accordance with DALI standard protocol lEC 62386-102,IEC 62386-207 and in compliance with DALI products from other international incorporation. |
||

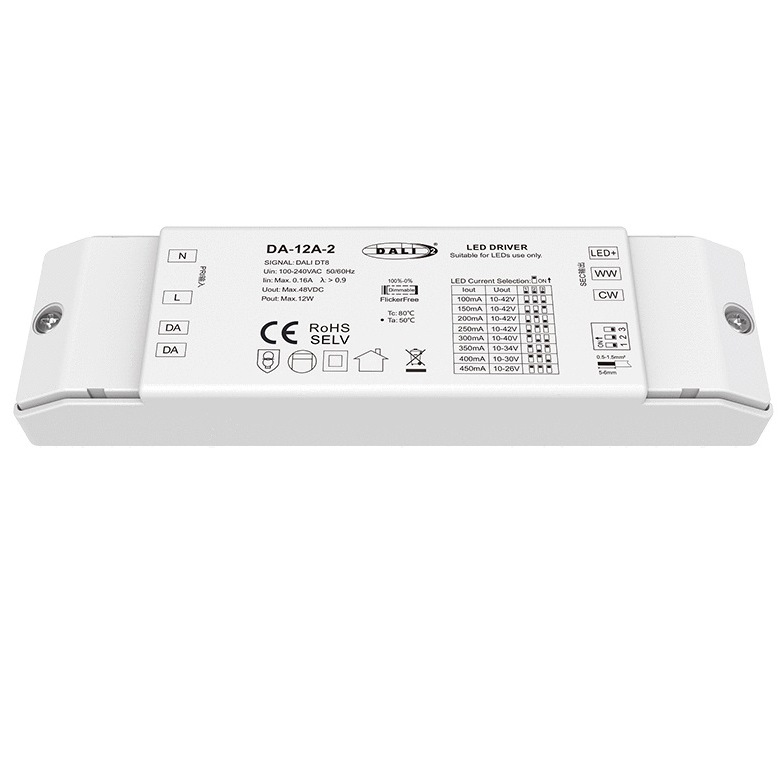

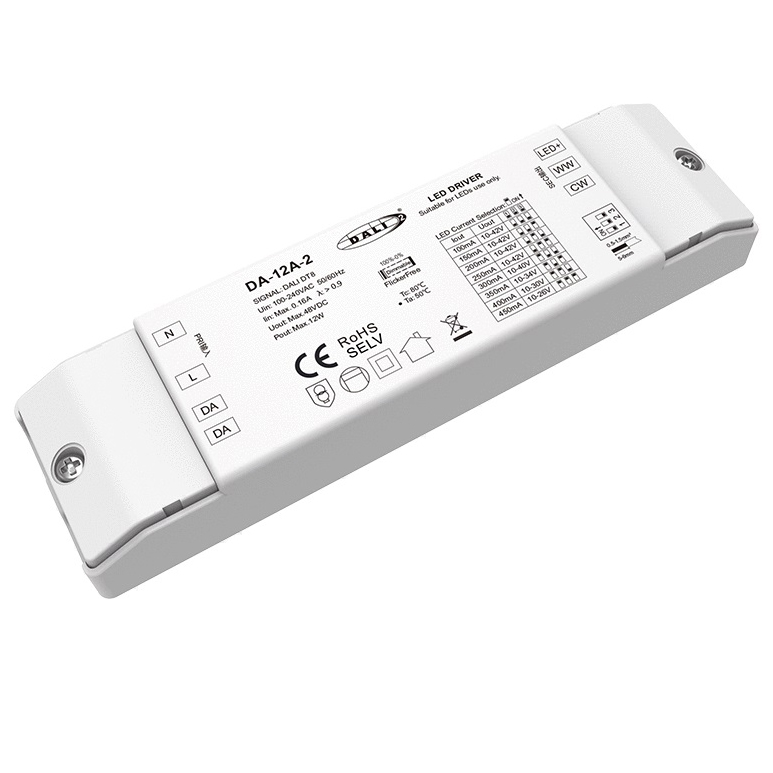

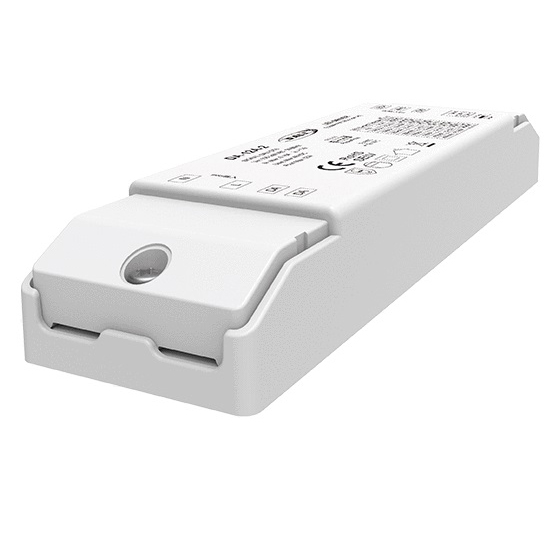

12W 100-450mA Constant Current 3CCT DALI LED Driver
1. Support DALI2. 2. Class ll design, SELV safety ultra-low voltage. 3. PWM digital dimming, standard DALI logarithmic dimming curve. 4. DALI address will be automatically assigned by DALI master, 1 DALI address. 5. Universal AC input / Ful range, High PF, High efficiency, Flicker Free. 6. Standby power input<0.5W, meels the requiremenls of ERP certification. 7. Multi-current & wide voltage, suitable for different power LEDs. 8. Over-heat /Over-load / Short circuit protection, recover automatically. 9. Suitable for indoor LED lighting application.
Key Highlights
- DT8 CCT DALI 2
- High PF,Flicker Free, Low THD
- 240VAC
- PWM digital dimming
- Over-heat /Over-load / Short circuit protection, recover automatically.
Category: DALI Current Driver , DALI Driver
1. Support DALI2.
2. Class ll design, SELV safety ultra-low voltage.
3. PWM digital dimming, standard DALI logarithmic dimming curve.
4. DALI address will be automatically assigned by DALI master, 1 DALI address.
5. Universal AC input / Ful range, High PF, High efficiency, Flicker Free.
6. Standby power input<0.5W, meels the requiremenls of ERP certification.
7. Multi-current & wide voltage, suitable for different power LEDs.
8. Over-heat /Over-load / Short circuit protection, recover automatically.
9. Suitable for indoor LED lighting application.
