| Model NO.: | DA4-WPS | Brand |
FlexCUBE |
| Input Voltage | 12-48VDC | Output Voltage | 12-48VDC |
| Input Current | Max 20.5A | ||
| Output Current | 4x5A @12V/24VDC, 4x3A @ 36V/48VDC | ||
| Output Power | 4x60W@12V,4x120W@24V,4x108W@36V,4x144W@48V | ||
| Output Type | Constant Voltage | ||
| Input Signal | DALI | ||
| Dimming Range |
0-100% | ||
| Dimming Curve |
Logarithmic | ||
| PWM Frequency |
1KHZ/2KHZ/4KHZ/8KHZ/16KHZ | ||
| Size |
L178mm x W50mm x H38mm | ||
| Packaging | White Box or Colorful Box, any OEM can be supported. | ||
| Functions |
1. 4 channel constant voltage DALI LED Dimmer with digital display, 5A per channel. 2. DT6 dimming or DT8-TC color temperature or DT8-RGB or DT8-RGBW light type selectable. 3. For DT6 dimming, support 1-4 DALI address, 4 channel work separately. 4. DALI address can be manually assigned and shown in digital displayor automatically assigned by DALI master. 5. IP67 Waterproof. 7. PWM frequency 1000/2000/4000/8000/16000Hz selectable. 8. Over-heat / Over-load / Short circuit protection, recover automatically. 9. With fast selftesting function. 10. White & Black available. 11. In accordance with DALI standard protocol IEC 62386-102, IEC 62386-207 IEC 62386-209 and in compliance with DALI productsfrom other international incorporation. |
||

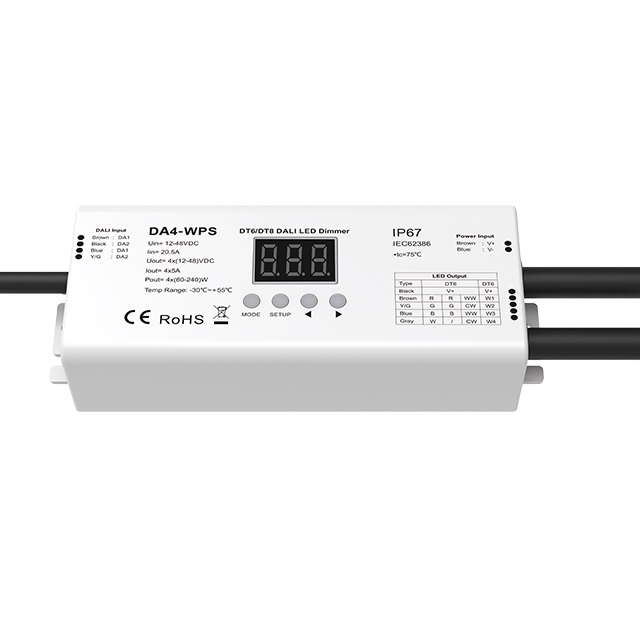

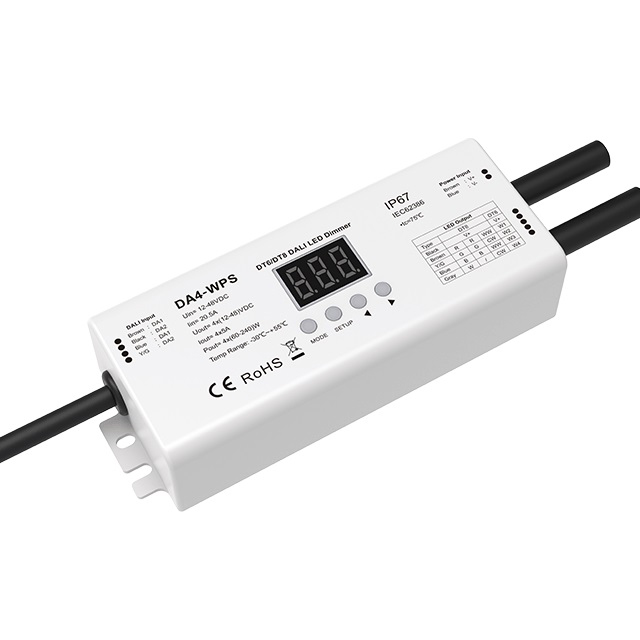

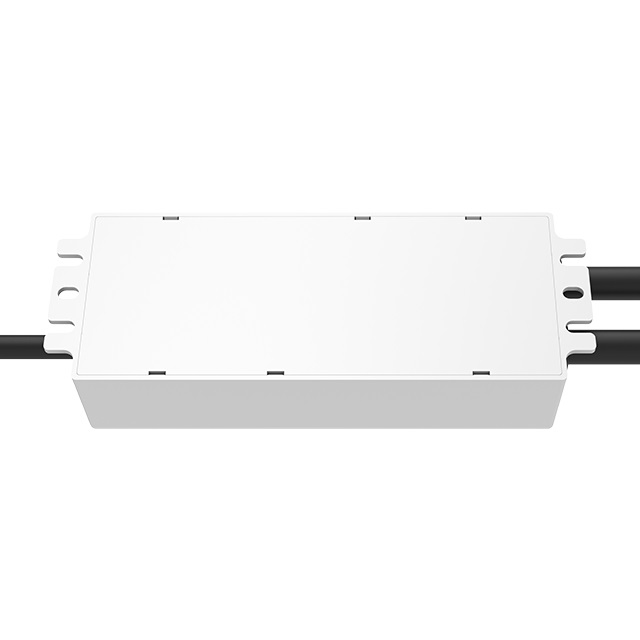

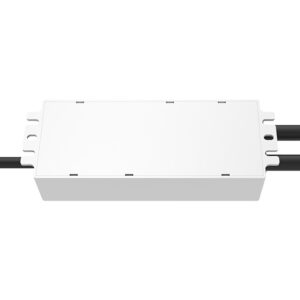

4 Channel 5A DT6 DT8 IP67 CV DALI LED Dimmer
1. 4 channel constant voltage DALI LED Dimmer with digital display, 5A per channel. 2. DT6 dimming or DT8-TC color temperature or DT8-RGB or DT8-RGBW light type selectable. 3. For DT6 dimming, support 1-4 DALI address, 4 channel work separately. 4. DALI address can be manually assigned and shown in digital displayor automatically assigned by DALI master. 5. IP67 Waterproof. 6. PWM digital dimming, standard DAll logarithmic dimming curve. 7. PWM frequency 1KHZ/2KHZ/4KHZ/8KHZ/16KHZ selectable. 8. Over-heat / Over-load / Short circuit protection, recover automatically. 9. With fast selftesting function. 10. White & Black available.
Key Highlights
- 4 Channels CV DALI Dimmer
- 1 DALI Address,DT6,DT8-CT,DT8-RGB and DT8-RGBW
- 4 DALI Addresses for DT6 Available
- PMW Digital Dimming
- Compliance with DALI, DALI2
- Best Auto Protection
- IP67 Waterproof
Category: Constant Voltage DALI Dimmer , DALI LED Dimmer
1. 4 channel constant voltage DALI LED Dimmer with digital display, 5A per channel.
2. DT6 dimming or DT8-TC color temperature or DT8-RGB or DT8-RGBW light type selectable.
3. For DT6 dimming, support 1-4 DALI address, 4 channel work separately.
4. DALI address can be manually assigned and shown in digital displayor automatically assigned by DALI master.
5. IP67 Waterproof.
6. PWM digital dimming, standard DAll logarithmic dimming curve.
7. PWM frequency 1KHZ/2KHZ/4KHZ/8KHZ/16KHZ selectable.
8. Over-heat / Over-load / Short circuit protection, recover automatically.
9. With fast selftesting function.
10. White & Black available.
Quality Assurance: Rigorous testing and premium components ensure long-lasting performance.
Expert Support: Our engineering team provides full technical support for your projects.
Fast Delivery: Global logistics network ensures your products arrive on time.
Is this dimmable? Yes, compatible with most PWM dimmers.
Can it be cut? Yes, cuttable every 50mm.
What is the warranty period? We offer a standard 3-year warranty on all our premium LED lighting systems.
- Under-cabinet lighting for kitchens and workshops
- Cove and soffit lighting for ambient room atmosphere
- Retail display shelving and product highlighting
- Architectural accents in hallways and staircases
- Custom furniture and integrated joinery lighting
- Backlighting for translucent materials like onyx or fabric
