| Model NO.: | DA5-L | Brand |
FlexCUBE |
| Input Voltage | 12-48VDC | Output Voltage | 12-48VDC |
| Support Colors |
. 1 DALI Address,DT6,DT8-CT,DT8-RGB,DT8-RGBW and DT8-RGB+CCT . 5 DALI Addresses for DT6 Available |
||
| Input Current | Max 20.5A | ||
| Output Current | 5x4A @12V/24VDC, 5x3A @ 36V/48VDC | ||
| Output Power | 4x60W@12V,4x120W@24V,4x108W@36V,4x144W@48V | ||
| Output Type | Constant Voltage | ||
| Input Signal | DALI | ||
| Dimming Range |
1-100% | ||
| Dimming Curve |
Logarithmic | ||
| PWM Frequency |
1KHZ/2KHZ/4KHZ/8KHZ/16KHZ | ||
| Size |
L178mm x W50mm x H38mm | ||
| Packaging | White Box or Colorful Box, any OEM can be supported. | ||
| Functions |
1. 5 channel constant voliage DALI LED Dimmer with digital display. 2. DT6 dimming / DT8-TC color temperature / DT8-RGB/ DT8-RGBW/ DT8-RGB+CCT light type selectable. 3. For DT6 dimming, support 1 DALI address (5 channel synchronized dimming)or 5 DALI address (5 channel independent dimming) 4. DALI address can be manually assigned and shown in digital displayor automatically assigned by DALI master. 5. Connect with extemal push switch to achieve on/off, brightness,color temperature and RGB color adjusiment. 6. PWM digital dimming , standard DALI logarithmic dimming curve. 7. PWM frequency 1000/2000/4000/8000/16000Hz selectable. 8. Over-load /Short circuit / Reverse protection, recover automatically. 9. In accordance with DALI standard protocol IEC 62386-102 IEC 62386-207,IEC 62386-209 and in compliance with DALI products from oher international incorporation. |
||

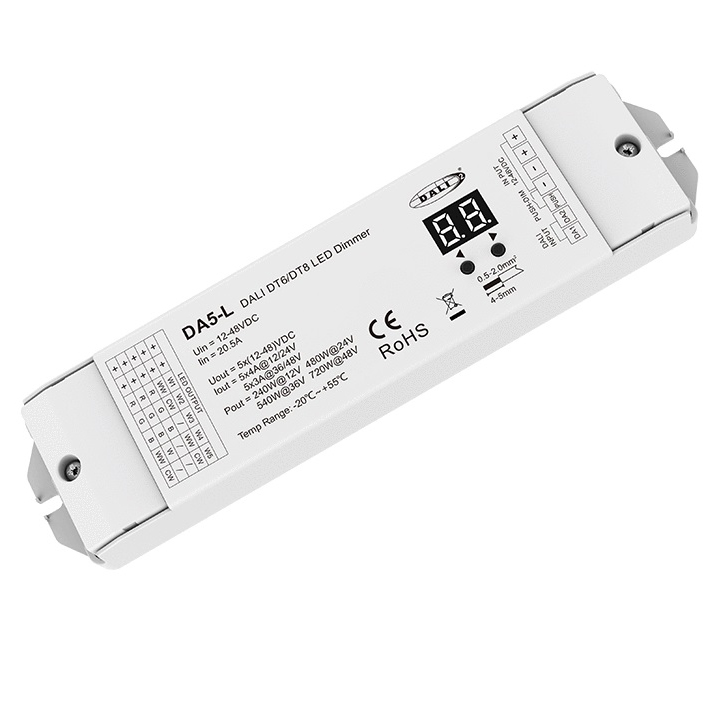

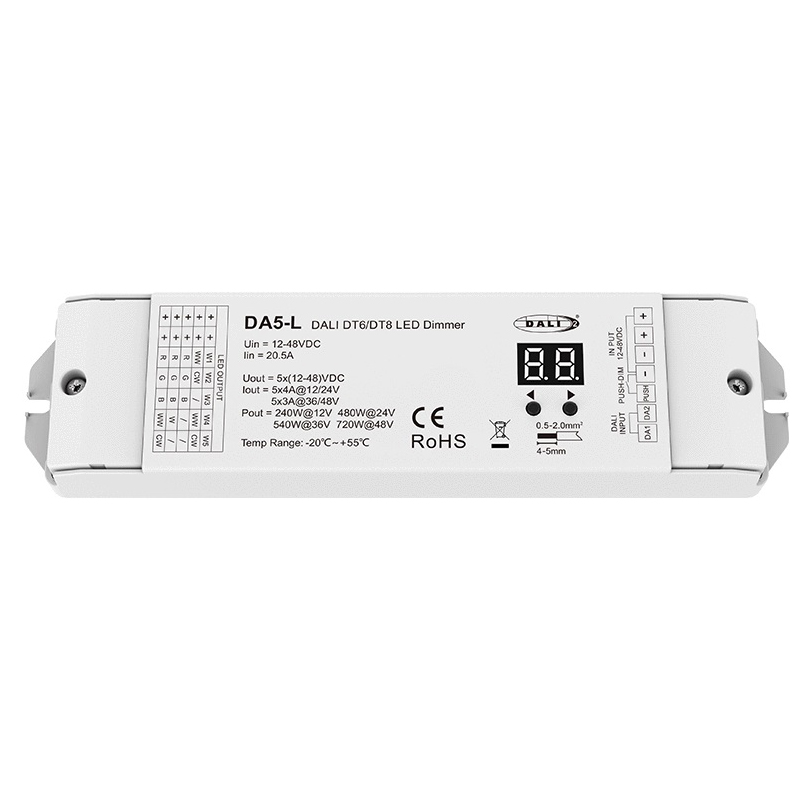

5 Channel 4A DT6 DT8 CV Constant Voltage DALI LED Dimmer
1. 5 channel constant voliage DALI LED Dimmer with digital display. 2. DT6 dimming / DT8-TC color temperature / DT8-RGB/ DT8-RGBW/ DT8-RGB+CCT light type selectable. 3. For DT6 dimming, support 1 DALI address (5 channel synchronized dimming)or 5 DALI address (5 channel independent dimming) 4. DALI address can be manually assigned and shown in digital displayor automatically assigned by DALI master. 5. Connect with extemal push switch to achieve on/off, brightness,color temperature and RGB color adjusiment. 6. PWM digital dimming , standard DALI logarithmic dimming curve. 7. PWM frequency 1000/2000/4000/8000/16000Hz selectable. 8. Over-load /Short circuit / Reverse protection, recover automatically.
Key Highlights
- 5 Channels CV DALI Dimmer
- 1 DALI Address,DT6,DT8-CT,DT8-RGB,DT8-RGBW and DT8-RGB+CCT
- 5 DALI Addresses for DT6 Available
- PMW Digital Dimming
- Compliance with DALI, DALI2
- Best Auto Protection
Category: Constant Voltage DALI Dimmer , DALI LED Dimmer
Tags: 3CCT , DALI , DALI2 , DT6 , DT8 , RGB , RGB+CCT , RGBW
1. 5 channel constant voliage DALI LED Dimmer with digital display.
2. DT6 dimming / DT8-TC color temperature / DT8-RGB/ DT8-RGBW/ DT8-RGB+CCT light type selectable.
3. For DT6 dimming, support 1 DALI address (5 channel synchronized dimming)or 5 DALI address (5 channel independent dimming)
4. DALI address can be manually assigned and shown in digital displayor automatically assigned by DALI master.
5. Connect with extemal push switch to achieve on/off, brightness,color temperature and RGB color adjusiment.
6. PWM digital dimming , standard DALI logarithmic dimming curve.
7. PWM frequency 1000/2000/4000/8000/16000Hz selectable.
8. Over-load /Short circuit / Reverse protection, recover automatically.
