| Model NO.: | DV1-S | Brand |
FlexCUBE |
| Input Voltage | 12-48VDC | Output Voltage | 12-48VDC |
| Input Current | Max. 8.5A | ||
| Output Current | 8A | ||
| Output Power | 96W@12V,192W@24V,288W@36V,384W@48V | ||
| Output Type | Constant Voltage | ||
| Input Signal | DALI + Push Dim | ||
| Dimming Range |
0-100% | ||
| Dimming Curve |
Logarithmic | ||
| PWM Frequency |
2000 Hz(Default)/8KHz/16KHz | ||
| Size |
L114mm x W38mm x H26mm | ||
| Packaging | White Box or Colorful Box, any OEM can be supported. | ||
| Functions |
1. 1 channel constant voltage DALI LED Dimmer, output Max. 8.5A 2. DALI address will be automatically assigned by DALl master,1 DALI address. 3. PWM digital dimming, standard DALI logarithmic dimming curve. 4. Connect with external push switch to achieve on/off and dimming function. 5. Over-heat / Overload / Short circuit protection, recover automatically. 6. DALI-2 certified, in accordance with DALI standard protocol IEC 62386-101,102,207 and in compliance with DALI products fromother intemational incorporation. |
||

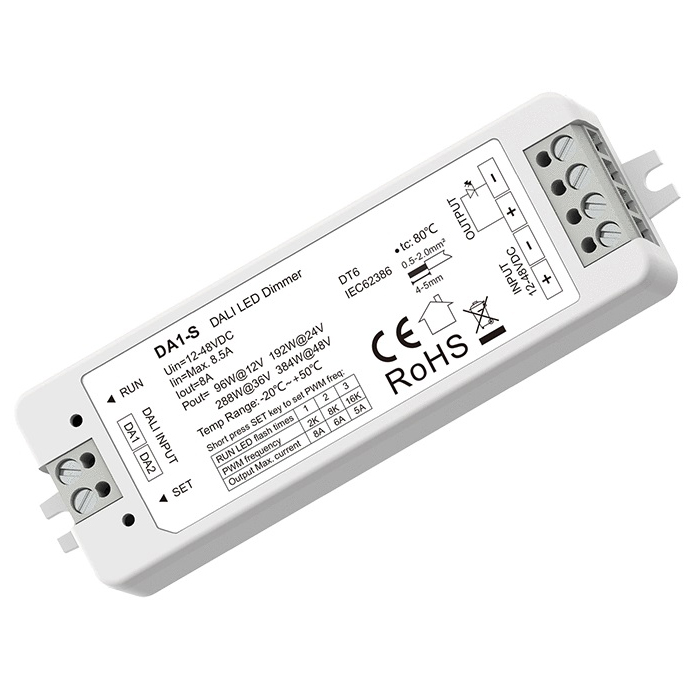

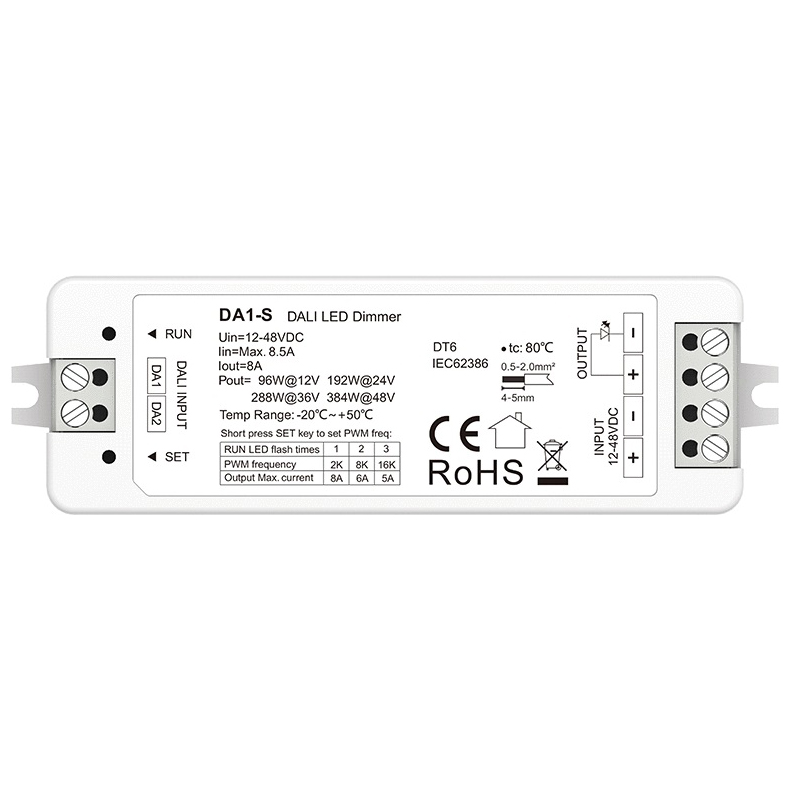

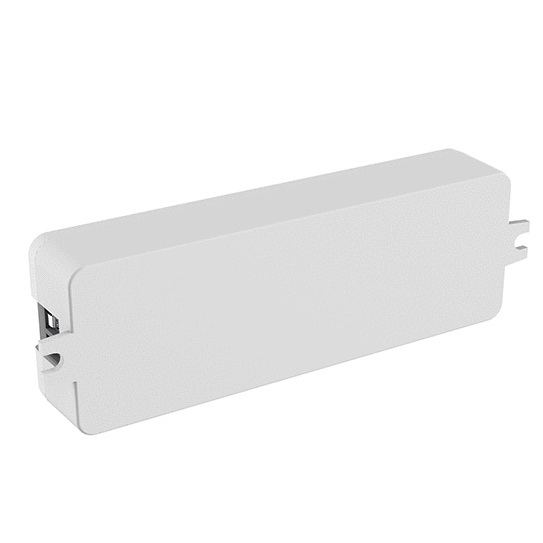

1 Channel 8.5A DT6 Constant Voltage DALI LED Dimmer
1. 1 channel constant voltage DALI LED Dimmer, output Max. 8.5A. 2. DALI address will be automatically assigned by DALl master,1 DALI address. 3. PWM digital dimming, standard DALI logarithmic dimming curve. 4. Connect with external push switch to achieve on/off and dimming function. 5. Over-heat / Overload / Short circuit protection, recover automatically.
Key Highlights
- DT6 DALI Standard
- Brightness Adjustable
- PMW Digital Dimming
- Compliance with DALI, DALI2
- Push Dimmable Option
Category: Constant Voltage DALI Dimmer , DALI LED Dimmer
1. 1 channel constant voltage DALI LED Dimmer, output Max. 8.5A.
2. DALI address will be automatically assigned by DALl master,1 DALI address.
3. PWM digital dimming, standard DALI logarithmic dimming curve.
4. Connect with external push switch to achieve on/off and dimming function.
5. Over-heat / Overload / Short circuit protection, recover automatically.
