| Model NO. |
IT DALI 30/220-240/700 CS | Brand | Osram |
| Input | 220-240VAC | Frequency | 50/60Hz |
| Efficiency | 88% | PF | >0.98 |
| Output Voltage |
15-42VDC | Output Current |
350/400/450/500/550/600/650/700mA |
| Max. O-Voltage |
60VDC | Output Power |
Max. 29.4W |
| Ta |
50℃ |
Tc |
80℃ |
| Dimming | 1-100% |
THD |
<10%@230VAC |
| Protection type | Class II | Low ripple |
< 5 % |
|
Output type
|
SELV |
Operation temperature |
-20°C-50°C |
| Warranty | 5 years | Certifications | SAA CE ROHS |
|
Surge |
L-N:1KV |
||
| Features | → DALI-2 certified → PUSH Touch DIM → High PF,Flicker Free, Low THD → Flexible Ouput Selectable → Small Size |
||

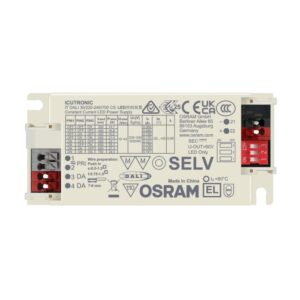

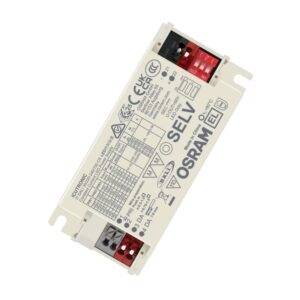

30W IT DALI 30 220-240 700 CS Osram DALI Driver
The reliable driver for energy saving lighting. DALI-2 certified; Embedded with Touch DIM/Corridor function; High flexibility thanks to wide operating range; Simple and easy current setting via dipswitch interface.
Key Highlights
- DALI-2 certified
- PUSH Touch DIM
- High PF,Flicker Free, Low THD
- Flexible Ouput Selectable
- Small Size
Category: DALI Current Driver , DALI Driver
The reliable driver for energy saving lighting. DALI-2 certified; Embedded with Touch DIM/Corridor function; High flexibility thanks to wide operating range; Simple and easy current setting via dipswitch interface.
